• Electric, 6 DOF Arm
  • Robust, reliable and inexpensive.
  • Low Power Requirements. Ideal for use on a variety of battery powered UGVs.
  • Proportional rate or closed-loop position control


  • Military/Law Enforcement
  • EOD/IEDD operations
  • Bio-Chem
  • Nuclear
  • Homeland Security Missions
Viper Electric Manipulator System ™

Go where no arm has gone before

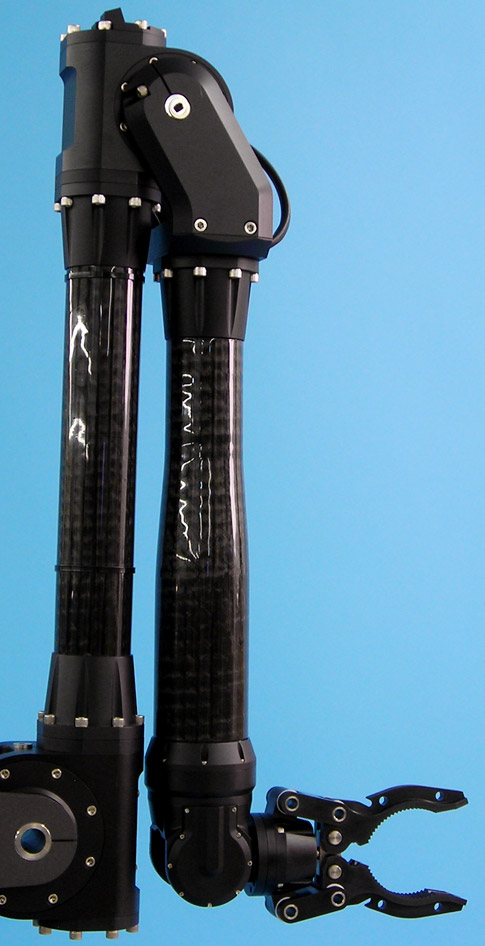

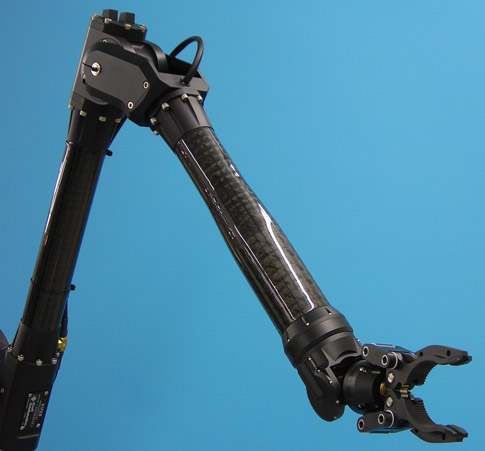

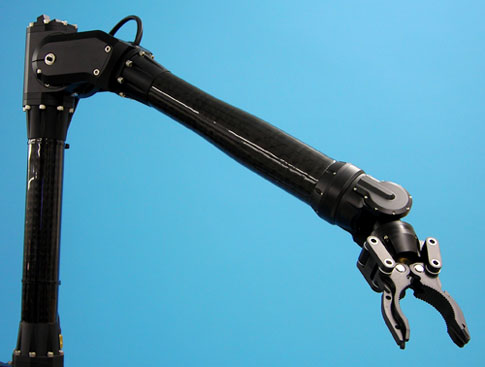

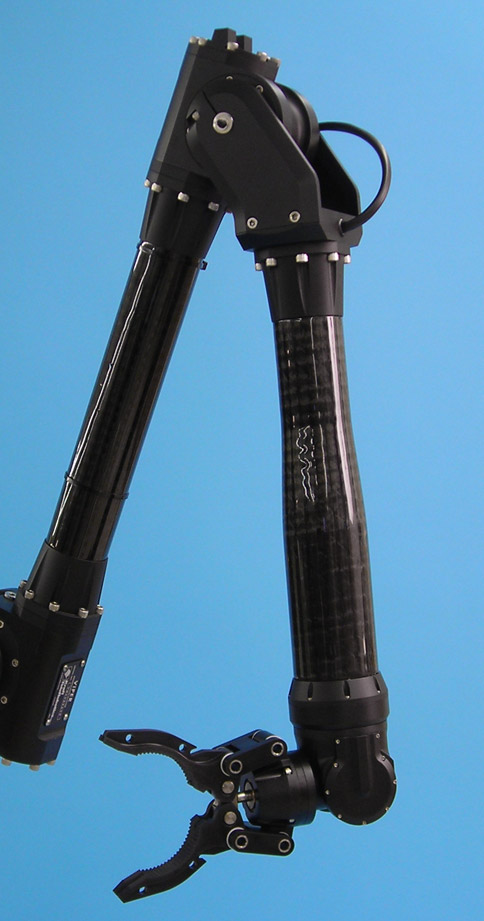

Viper is the newest addition to the Kraft line up of remotely operated manipulator arms for use in hazardous environments. Viper is a 6-degree-of-freedom high dexterity electric manipulator that is ideally suited for ause on unmanned ground vehicles and mobile platforms. Viper's high-performance actuators and carbon fiber structure provide a strong light weight arm with the power to complete a wide variety of tasks.

A close-coupled fully intersecting wrist design provides exceptional dexterity and the ability to access small spaces. All the arm's joints are sealed from external contamination, and Viper's slim profile and low bulk wrist provide a decisive advantage when reaching into confined spaces. Simply put, Viper can be operated under extreme environmental conditions, and reach into places where other arms can't reach.

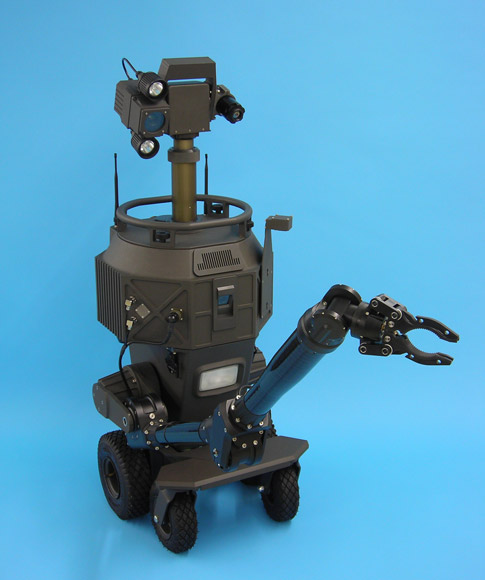

Viper is designed to conserve energy and can be operated for extended periods of time with very little power consumption. This makes the arm well suited for use on both small and medium size battery powered vehicles.

Viper is a robust, reliable, and cost effective manipulator for commercial, aerospace and defense applications. With the option of proportional rate control, closed loop control, or master/slave control with force feedback, Viper is capable of supporting military EOD & IEDD missions, as well as many fire & rescue, nuclear, law enforcement and homeland security operations.


Viper Tool Box - Coming Soon

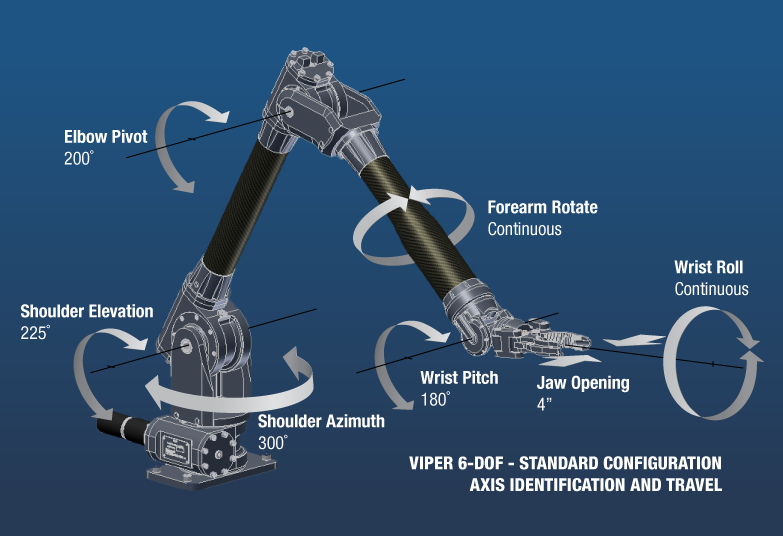

Viper 6-DOF, Standard Configuration Axis Identification and Travel

Viper Arm Specifications

Manipulator Type Electric 5, 6, or 7 function
Mode of Operation Proportional Rate Control or Closed-loop Position Control
Construction Anodized aluminum & carbon fiber

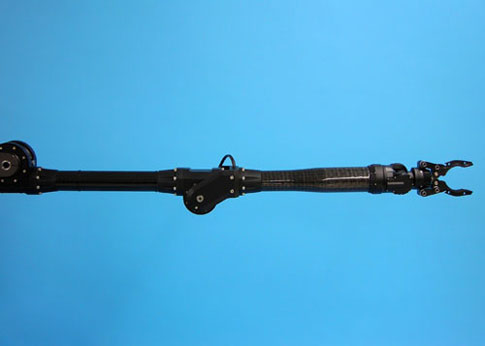

Horizontal Reach 50" (1270 mm)
Maximum Lift Capacity 45 lbs (20.4 kg)
Lift Capacity at Full Extension 25 lbs (11.3 kg)
Degrees Freedom-Of-Motion 6 plus gripper (7 functions)
Shoulder Azimuth 300°
Shoulder Elevation 225°
Elbow Pivot 200°
Wrist Pitch 180°
Forearm Rotate Continuous
Wrist Roll Continuous
Jaw Opening (standard gripper) 4"
Weight 55 lbs (25kg) - (7 function configuration)
Power Requirements 24 VDC
